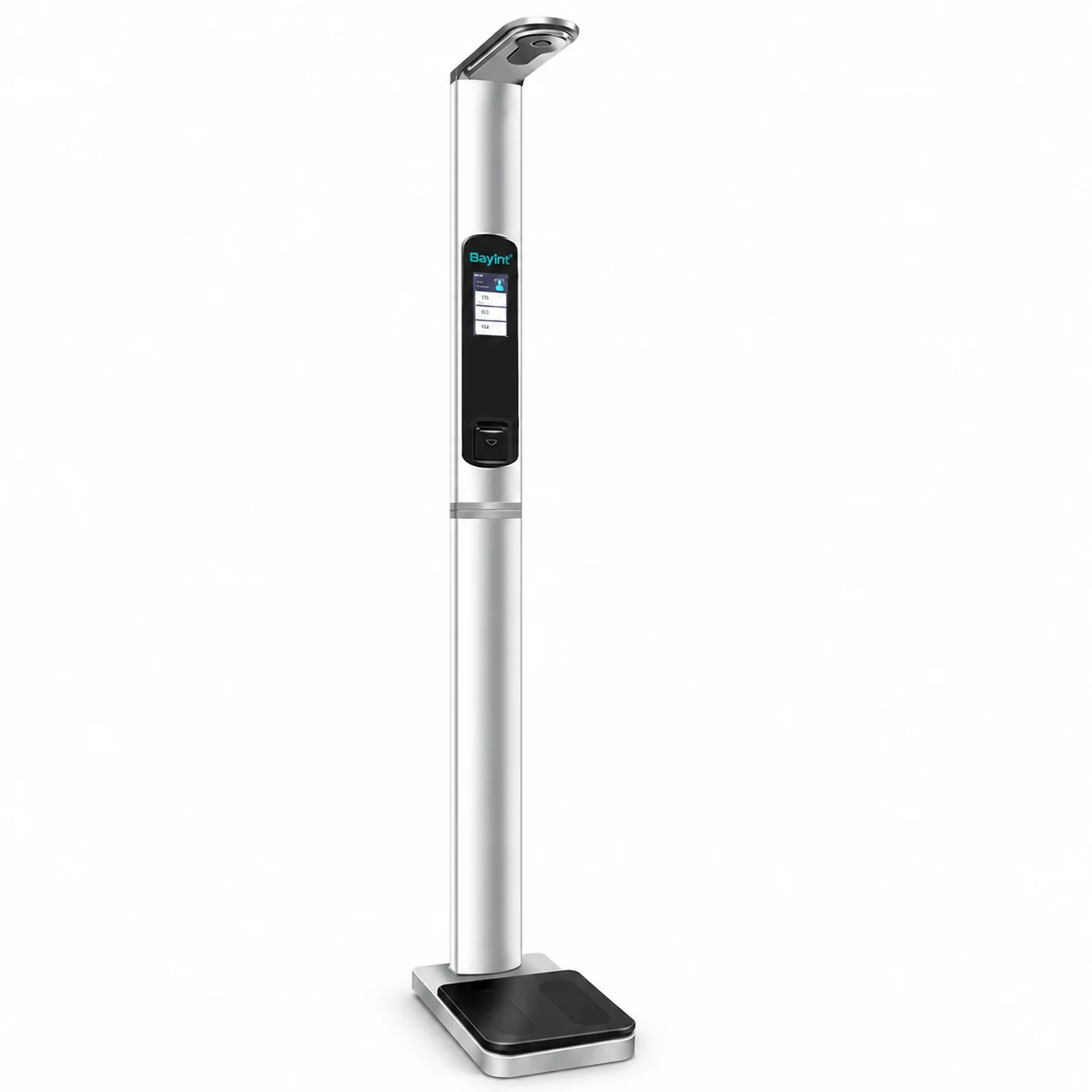

Bayint Ultrasonic Height and Weight BMI Scale — M08 / M09 / M50
The Bayint ultrasonic height and weight scale collection combines height, weight and automatic BMI calculation with on-screen results and thermal printing. Choose M08, M09 or M50 to match your screening workflow.
- Ultrasonic height: 5–200 cm; accuracy ±0.1 cm.
- Weight: 1–200 kg; accuracy ±0.05 kg.
- 7-inch color touch display and integrated thermal printer.
- M09 adds temperature and barcode / QR reading.
- M50 adds blood pressure and body composition.
- Wi-Fi / RS232 interfaces for project-specific connectivity.
Contact Bayint to confirm your model, access method and equipment configuration.
Ultrasonic height and weight scales for connected screening

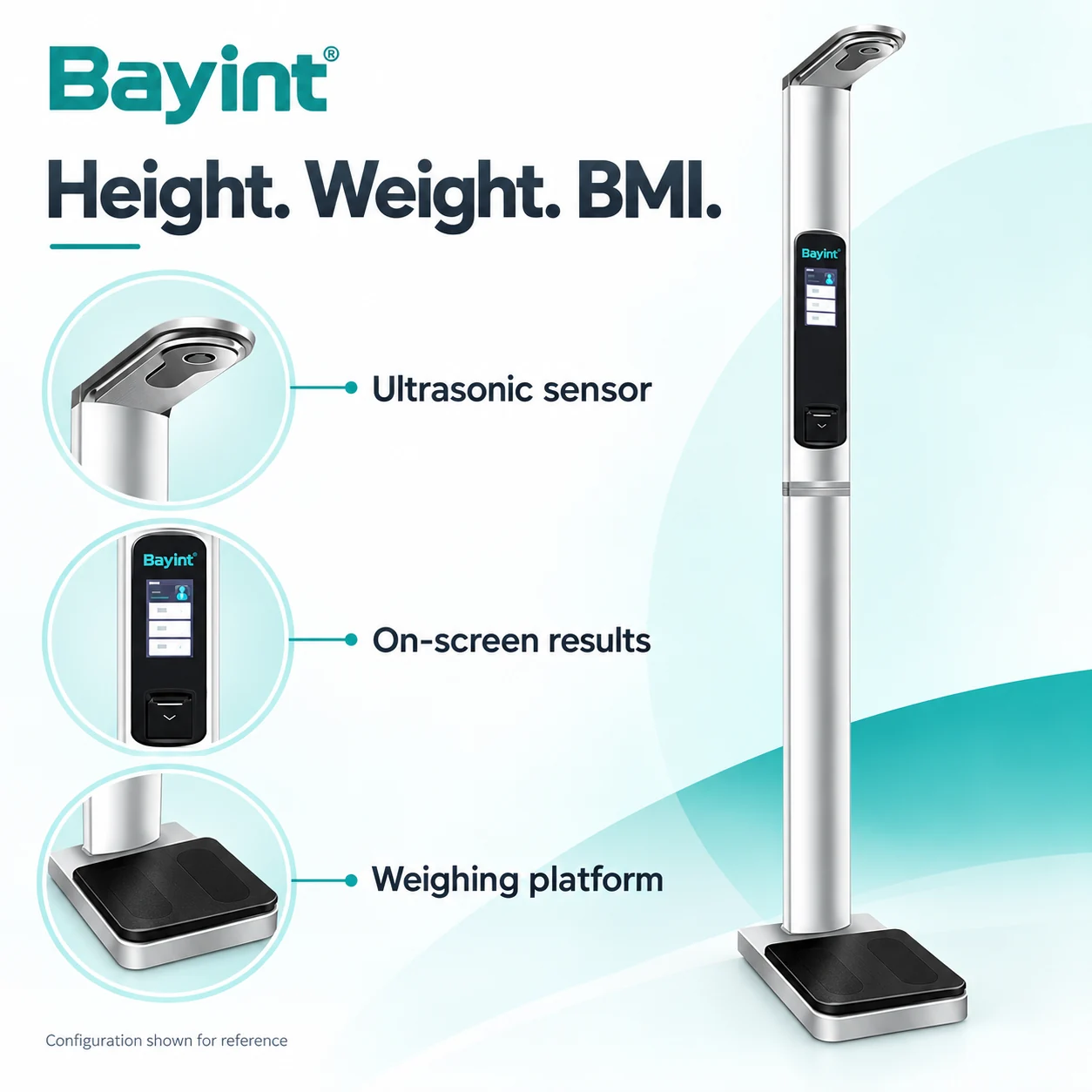

The Bayint M08, M09 and M50 collection brings height, weight and automatic BMI calculation into one guided measurement workflow. An overhead ultrasonic sensor measures height, while the weighing platform captures weight. Results are shown on screen and can be printed using the integrated thermal printer.
Choose the configuration that fits your measurement requirements: essential height and weight, added forehead temperature, or a broader screening workflow with blood pressure and body composition.
Measure
Collect height and weight, then calculate BMI automatically.
Review
Follow the on-screen workflow on a 7-inch color touch display.
Record
Print a thermal ticket or discuss Wi-Fi / RS232 data transfer with Bayint.
Compare M08, M09 and M50
All three models share core height, weight and BMI measurements. Additional functions depend on the selected model.
| Feature | M08 | M09 | M50 |
|---|---|---|---|
| Height, weight & BMI | Included | Included | Included |
| Forehead temperature | Optional | Included | Included |
| Barcode / QR reader | Optional | Included | Included |
| Blood pressure | Not included | Not included | Included |
| Body composition | Not included | Not included | Included |
| Thermal printing | Included | Included | Included |

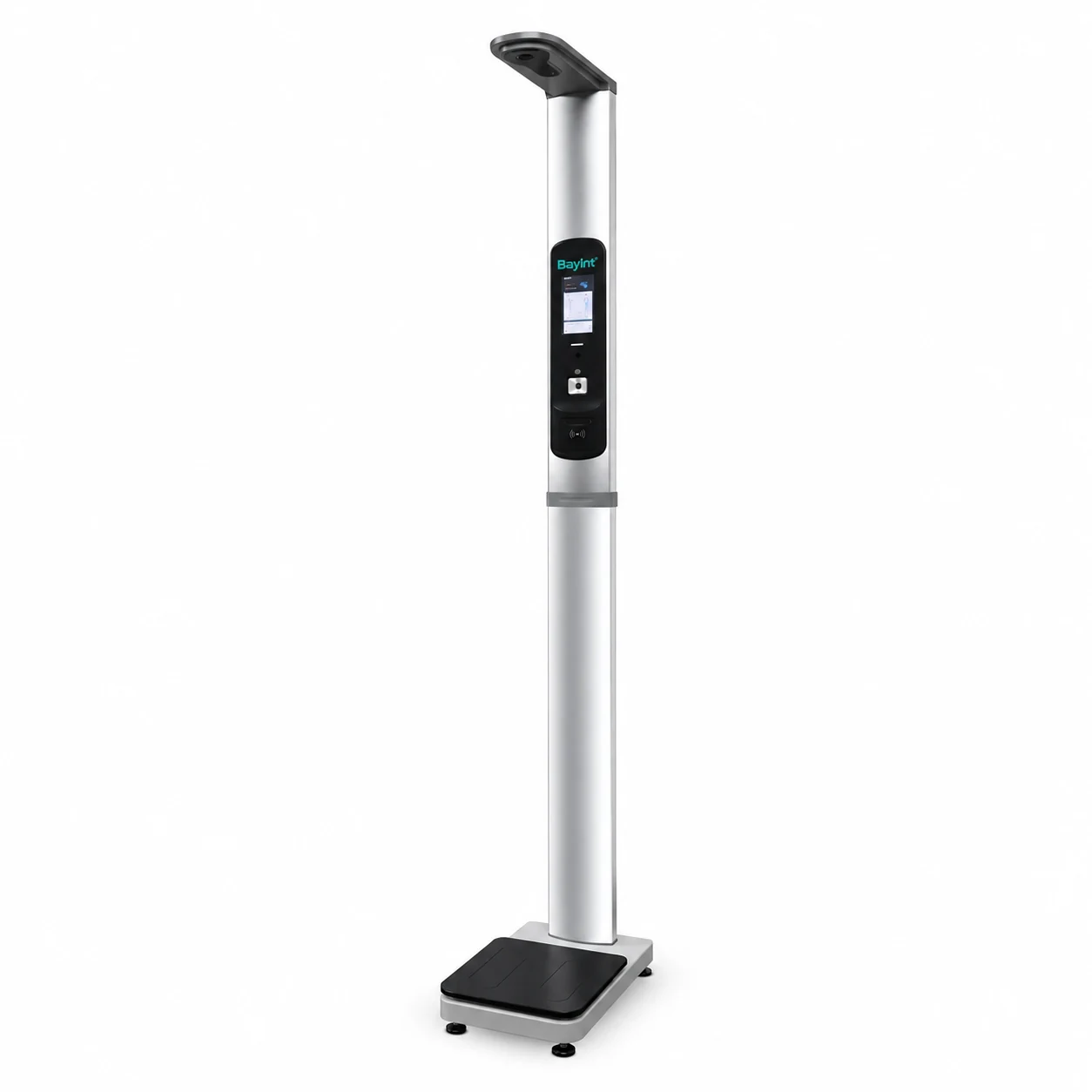

Product views illustrate available configurations. Confirm identification controls, accessories and the final equipment package in your quotation.
Key measurement and workflow features
Ultrasonic height measurement
Measure height without a sliding headpiece. The collection specification lists a 5–200 cm range and ±0.1 cm height accuracy.
Weight and automatic BMI
A resistance-strain weighing system measures 1–200 kg with ±0.05 kg accuracy. BMI is calculated from the measured height and weight.
Touch display and thermal reporting
The 7-inch resistive color touch screen displays the measurement workflow. An integrated thermal printer provides a compact result ticket.
Identification and connectivity
Barcode / QR identification is included on M09 and M50, and optional on M08. Wi-Fi and RS232 interfaces support project-specific data transfer. Confirm the integration requirements with Bayint.
Ultrasonic height and weight scale specifications
| Item | Collection specification |
|---|---|
| Height measurement | Ultrasonic; 5–200 cm; accuracy ±0.1 cm |
| Weight measurement | Resistance strain type; 1–200 kg; accuracy ±0.05 kg |
| BMI | Automatically calculated from measured height and weight |
| Display | 7-inch resistive color touch screen; 1024 × 600 resolution |
| Data interfaces | Wi-Fi / RS232; RS-232C DB9 transmission interface |
| Power supply | 100–240 V AC, 50/60 Hz |
| Power consumption | ≤50 W |
| Dimensions (L × W × H) | 513 × 615 × 2310 mm |
| Machine weight | Approximately 24.5 kg |
| Operating environment | 5–40 °C; 20–85% RH, non-condensing |
| Storage temperature | −10 to +60 °C |
| Thermal printer | 203 dpi; up to 100 mm/s; 58 ±0.5 mm paper |
Model-specific modules
Forehead temperature — M09 / M50, optional on M08: 32.0–42.5 °C measurement range; 0.1 °C resolution; accuracy ≤±0.3 °C over 35–42 °C; measurement distance 5–8 cm.
Blood pressure — M50: oscillometric method; 30–280 mmHg pressure range; pressure accuracy ±3 mmHg; pulse range 40–199 beats/min with ±5% accuracy. Specified arm circumference: 20–32 cm.
Body composition — M50: four-electrode measurement; impedance range 200–1000 Ω with ±10% tolerance.
Specifications follow the Bayint M08 / M09 / M50 Product Brochure. Optional modules, access methods and integration requirements must be confirmed for the ordered configuration.
Plan your measurement point
Hospitals & clinics
Organize routine height, weight and selected screening measurements in one station.
Pharmacies & health centers
Provide an accessible measurement point with on-screen results and printed tickets.
Community & public spaces
Discuss the access method, installation space and reporting workflow for your project.
Explore the Bayint height and weight scale range or contact Bayint to confirm your model and integration requirements.
Download the M08 / M09 / M50 product brochure
Compare the measurement functions, model differences, core specifications and optional modules in our English collection brochure.
Download M08 / M09 / M50 Brochure (PDF)For the product operating manual, please contact your sales representative. Email deby@bayint.com.
Frequently asked questions
What is the difference between M08, M09 and M50?
All three measure height, weight and BMI and include thermal printing. M09 adds forehead temperature and barcode / QR identification. M50 also includes blood pressure and four-electrode body composition. Temperature and code reading are optional on M08.
What are the height and weight measurement ranges?
The collection brochure specifies height from 5 to 200 cm with ±0.1 cm accuracy, and weight from 1 to 200 kg with ±0.05 kg accuracy.
How is BMI calculated?
The scale calculates BMI automatically using the measured weight and height. Results are displayed as part of the measurement workflow.
Can customers print their measurement results?
Yes. The collection includes an integrated thermal printer for measurement tickets. Confirm ticket content and reporting requirements with Bayint.
Can the scale connect to our data system?
Wi-Fi and RS232 interfaces are specified. Share your platform, required data fields and integration workflow so Bayint can confirm compatibility and implementation requirements.
Where can I obtain the operating manual?
Download the collection brochure above for product information. For the operating manual for your selected model and configuration, contact your Bayint sales representative at deby@bayint.com.
