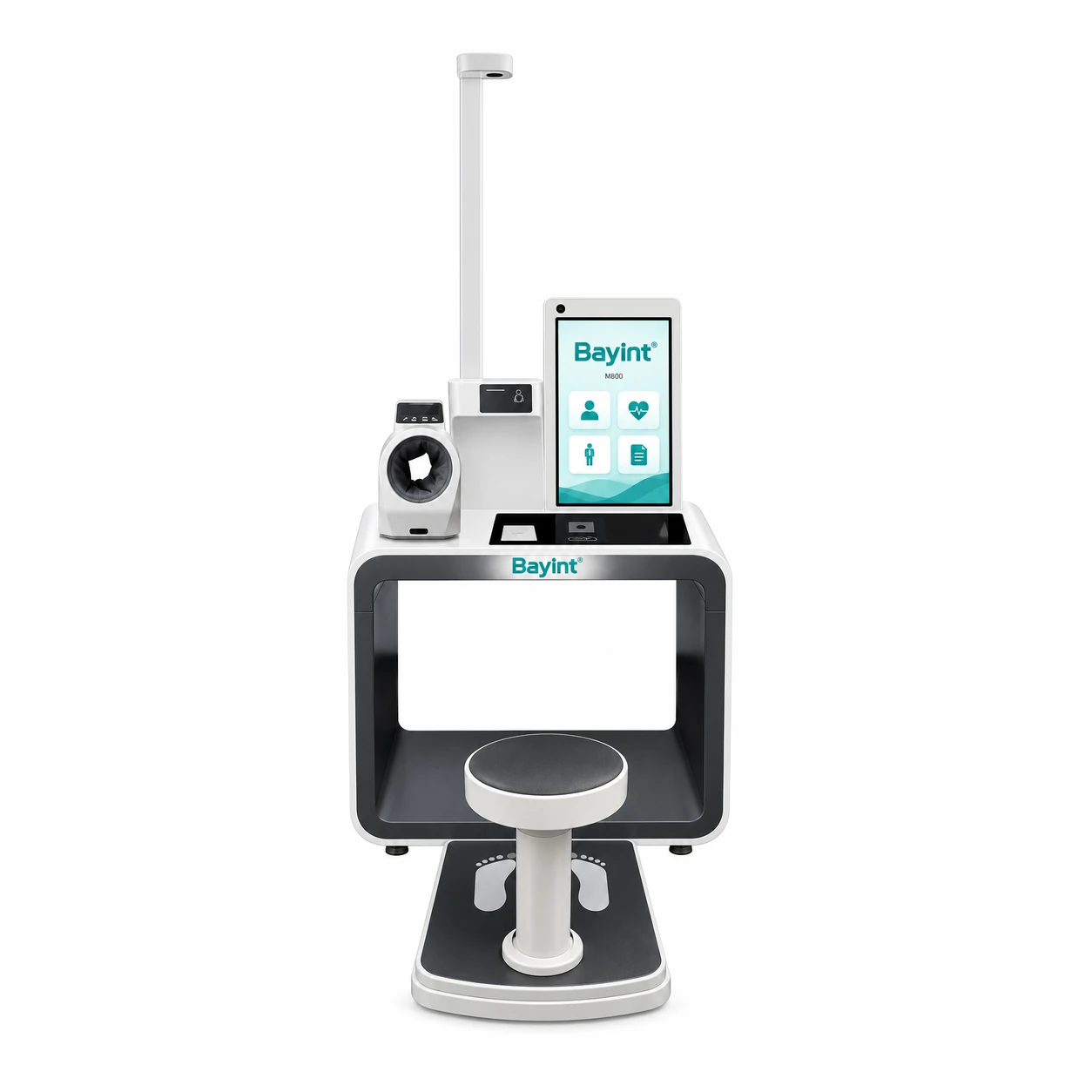

Bayint M800 Clinic Health Checkup Station
The Bayint M800 clinic health checkup station combines routine measurements, guided touchscreen interaction and printed results in one seated workstation.
- Height, weight, BMI, blood pressure, blood oxygen and forehead temperature measurements.
- A 21.5-inch touchscreen with guided self-service operation.
- QR code, IC card and phone-number workflows, configurable to your project.
- Built-in thermal printing, plus LAN and Wi-Fi connectivity.
- Optional body composition analysis, video consultation and platform integration.
Designed for clinics, hospital outpatient departments and community health centers. Contact Bayint to confirm the measurement modules and software workflow for your deployment.

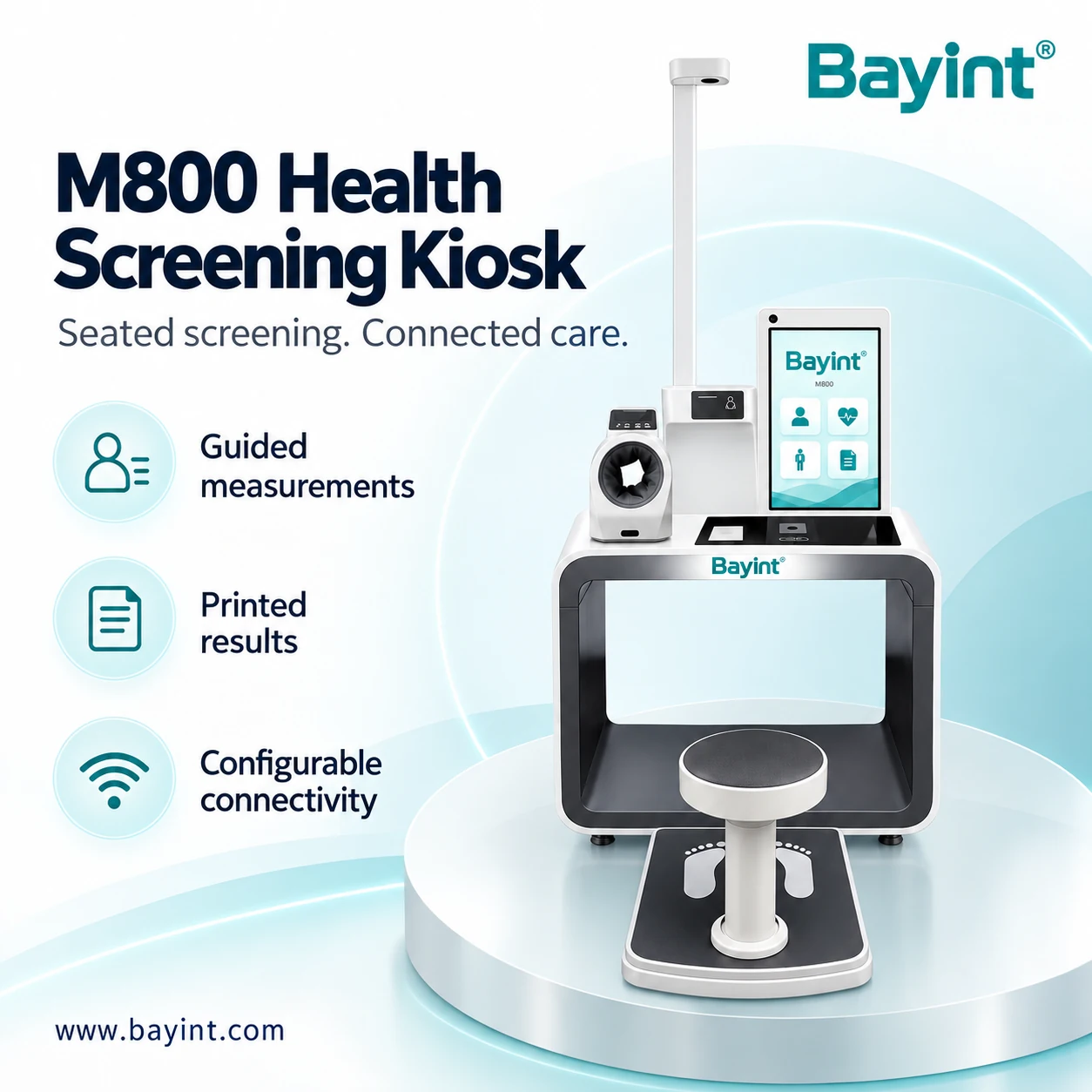

A seated clinic health checkup station for connected screening
The Bayint M800 brings routine measurements, guided interaction and health reporting together in one seated workstation. Designed for clinics, outpatient departments and community health centers, this vital signs kiosk supports a clear workflow from identification to printed results.
A 21.5-inch touchscreen guides the user through the selected measurements. The integrated seat and arm measurement position support a consistent screening visit, while network connectivity can link the station with your existing care workflow.

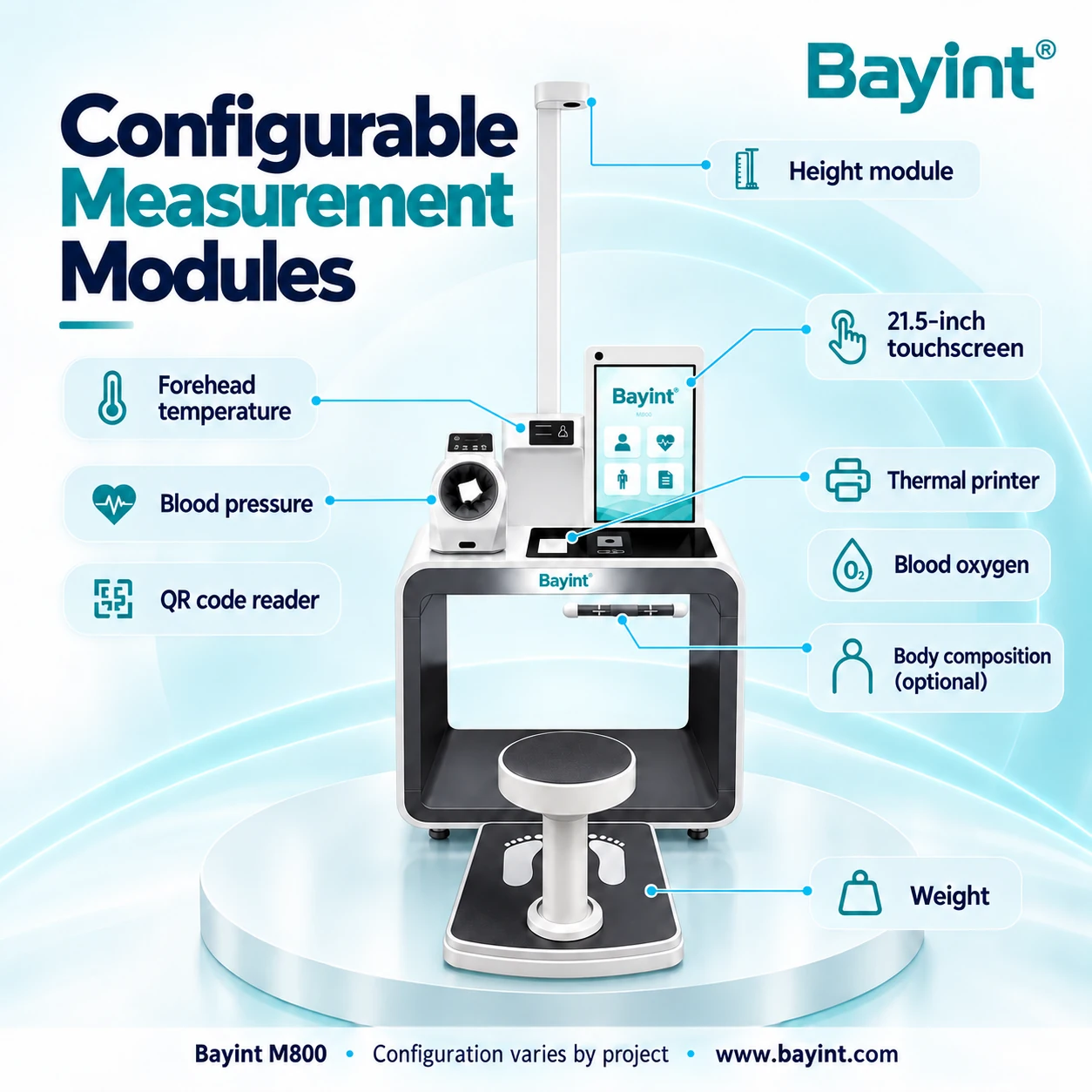

Measurements in one station
Height, weight, BMI, blood pressure, blood oxygen and non-contact forehead temperature, with optional body composition analysis.
Guided self-service
Touchscreen instructions and configurable access methods help users progress through the screening sequence.
Printed and connected results
A built-in thermal printer provides measurement tickets. Connected records and platform integration are configured to your project.
Bayint M800 product video
Watch the M800 product video here. Press Play to start; the video does not autoplay.
Key features of the M800 health screening kiosk

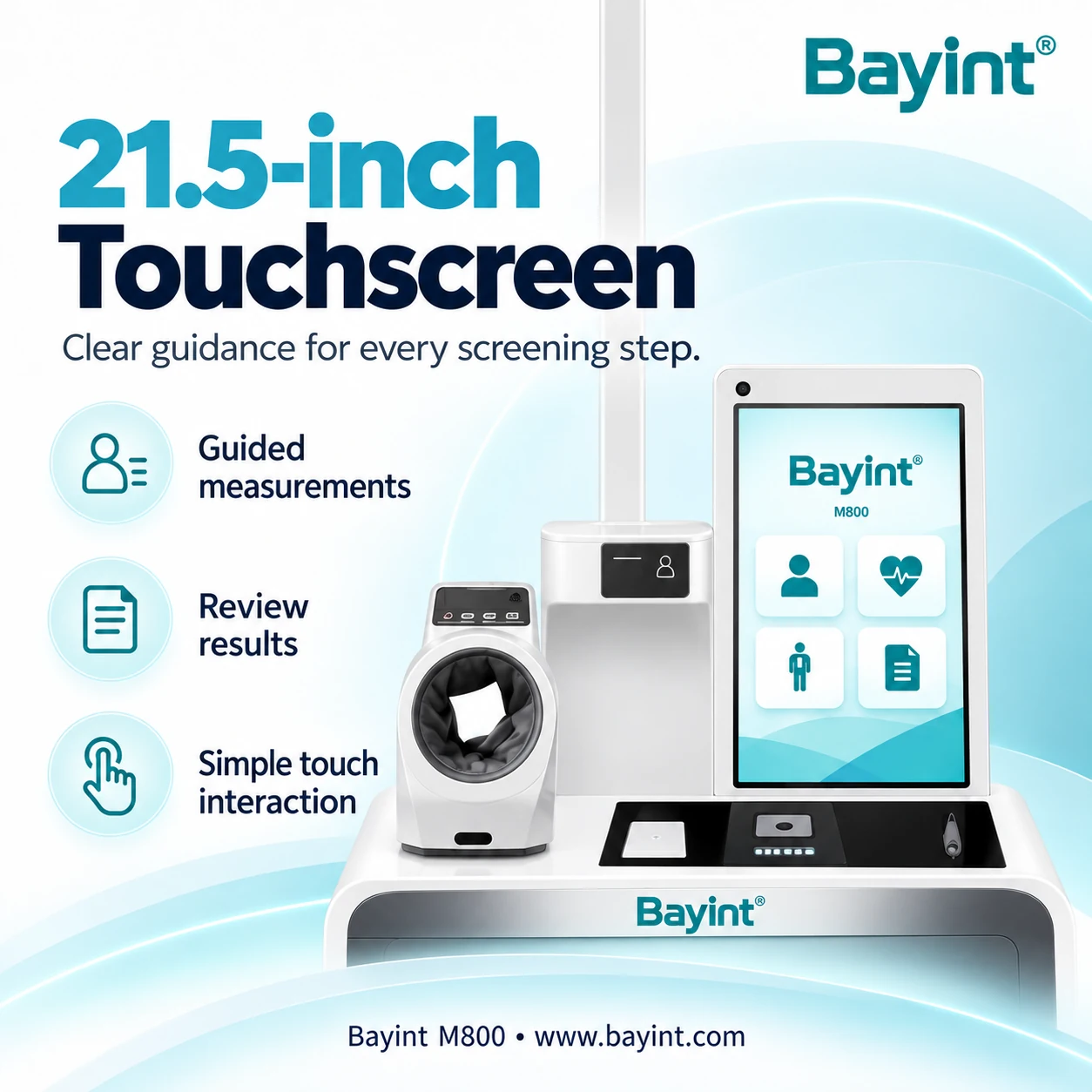

21.5-inch touch display
A clear, interactive interface supports guided measurements and review of collected results.
Flexible identification
Configure QR code, IC card or phone-number access. Barcode and hospital identity workflows depend on the selected reader and software integration.

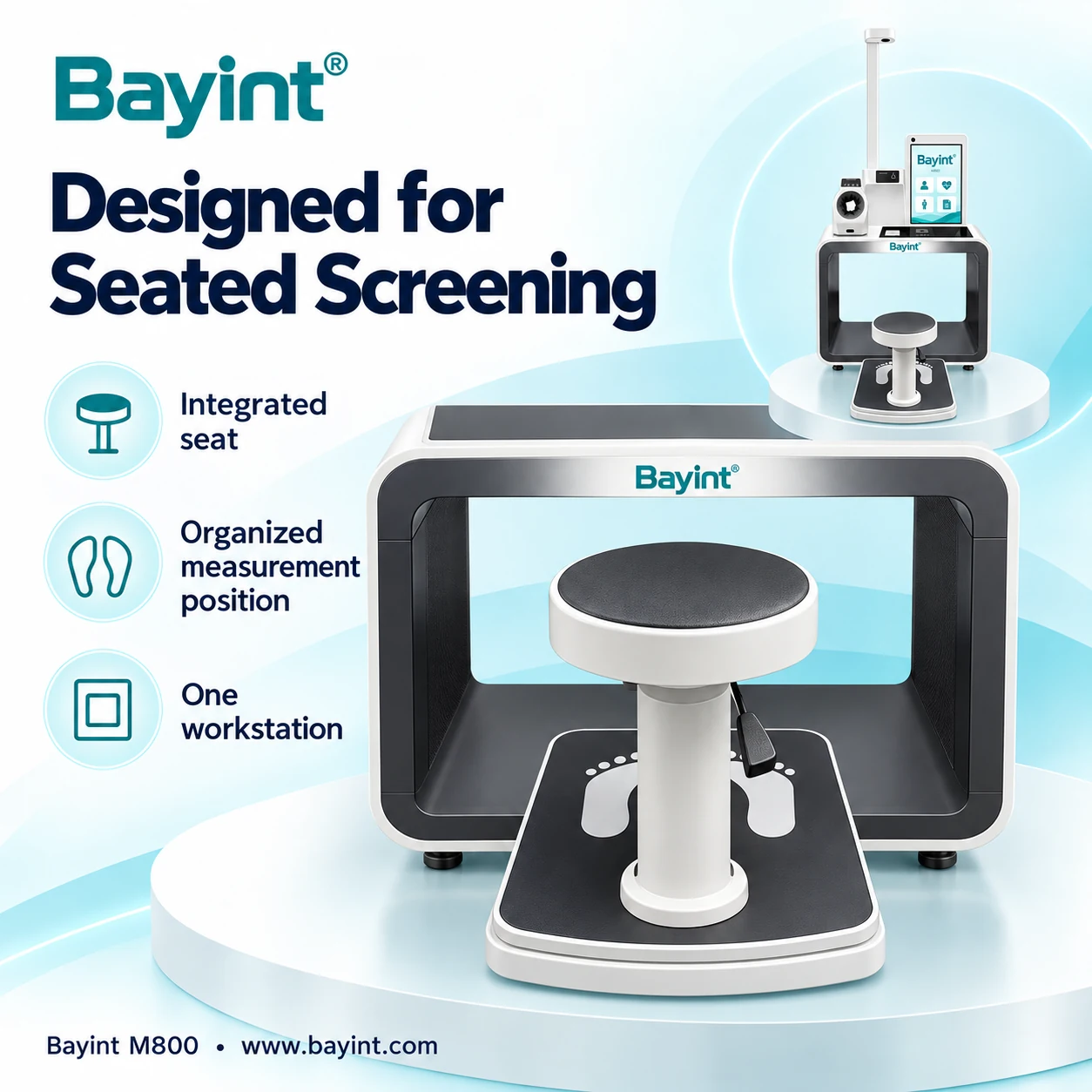

Seated measurement design
An integrated seat and arm measurement position bring the screening functions into one workstation.
Built-in thermal printing
Print a measurement ticket at the end of the session. Report content and branding can be configured for your deployment.
Network and platform integration
LAN and Wi-Fi connectivity support data transfer. Discuss HIS/EMR compatibility, interfaces and the integration scope with Bayint before ordering.
Project-specific options
Optional multi-frequency body composition analysis and video consultation can extend the workflow. Ask sales about availability of other modules, including ECG or breathalyzer integration.
From identification to reporting
- Identify: start with the configured login or registration method.
- Measure: follow the touchscreen guidance for the selected measurements.
- Review: view the collected results at the workstation.
- Report: print a ticket or transfer results to the connected platform.
Measurement sequence and completion time depend on the selected modules, workflow and user. Confirm any rapid-mode requirements with Bayint.
M800 technical specifications
| Item | Specification |
|---|---|
| Model | Bayint M800 |
| Height measurement | Ultrasonic; 50-200 cm; accuracy ±0.1 cm |
| Weight measurement | 5.5-200 kg; accuracy ±0.1 kg; automatic BMI calculation |
| Blood pressure | 0-270 mmHg; accuracy ±2 mmHg; arm circumference 17-42 cm |
| Blood pressure pulse rate | 40-180 beats/min; accuracy ±2% of displayed reading |
| Forehead temperature | Non-contact infrared; 32.0-42.5°C; accuracy ±0.3°C |
| Blood oxygen | Dual-wavelength LED oximetry and pulse measurement |
| Optional body composition | Multi-frequency, four-electrode analysis; electroplated electrodes |
| Display | 21.5-inch touch display |
| Access methods | QR code, IC card and phone-number workflows; reader and software options by configuration |
| Connectivity and interfaces | LAN and Wi-Fi; Wi-Fi / RS232 data interface, subject to integration configuration |
| Power supply | 100-240 V AC, 50/60 Hz |
| Machine weight | Approximately 78 kg; confirm the final configuration |
| Operating environment | 5-40°C; non-condensing |
| Thermal printer | 58 ±0.5 mm paper; 48 mm / 384-dot print width; 203 dpi; up to 100 mm/s |
| Optional camera | 2-megapixel autofocus camera; MJPEG / YUV, according to selected configuration |
Specifications follow the supplied M800 product brochure. Confirm the delivered module set and integration requirements with Bayint. External dimensions are available from sales once the final configuration is confirmed.

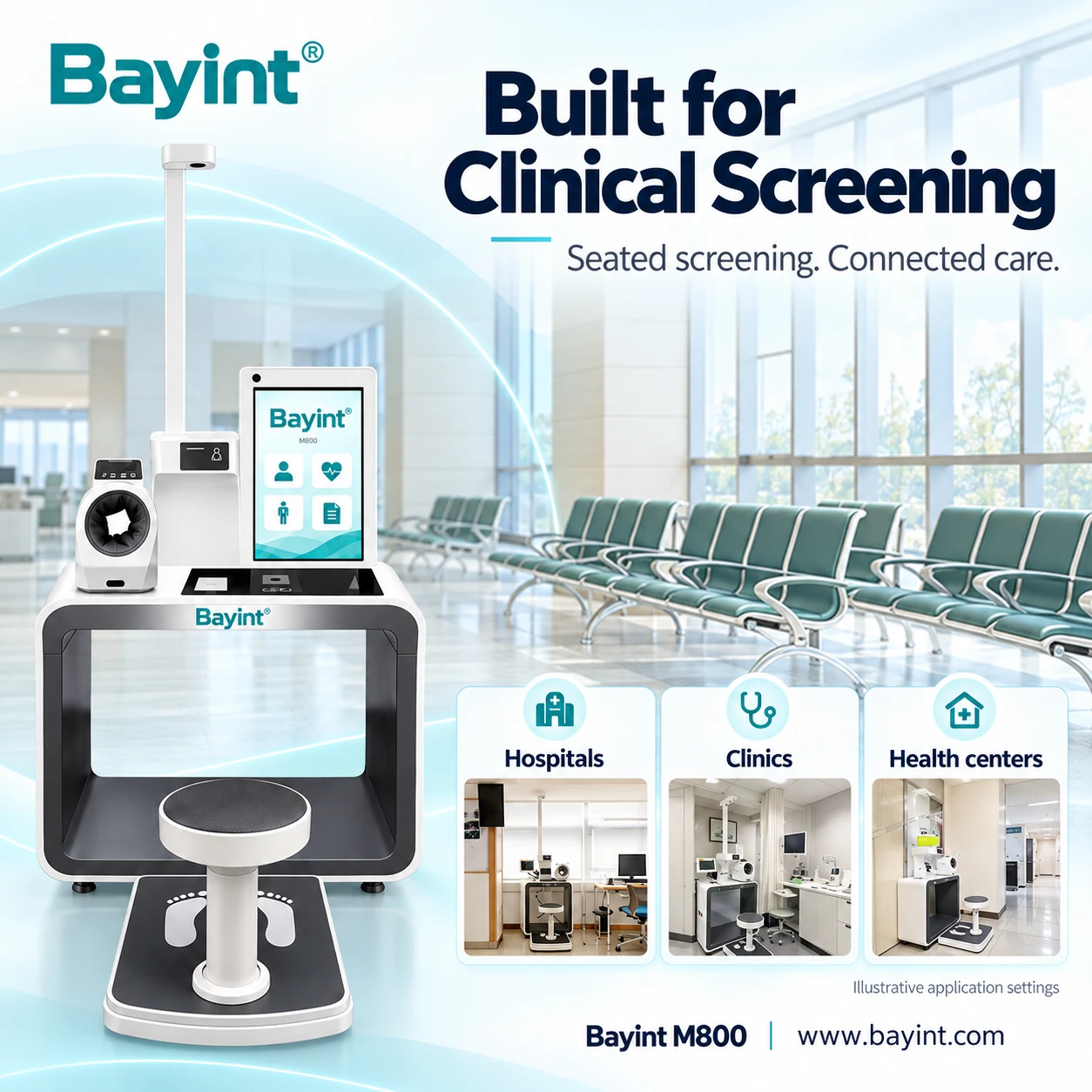

Where to use the M800
Hospitals and outpatient departments
Collect routine measurements before consultation and support a connected patient intake workflow.
Clinics and health centers
Provide a self-service health kiosk for routine screening, health records and follow-up visits.
Workplace and residential care
Support employee health programs and organized screening in residential care settings.

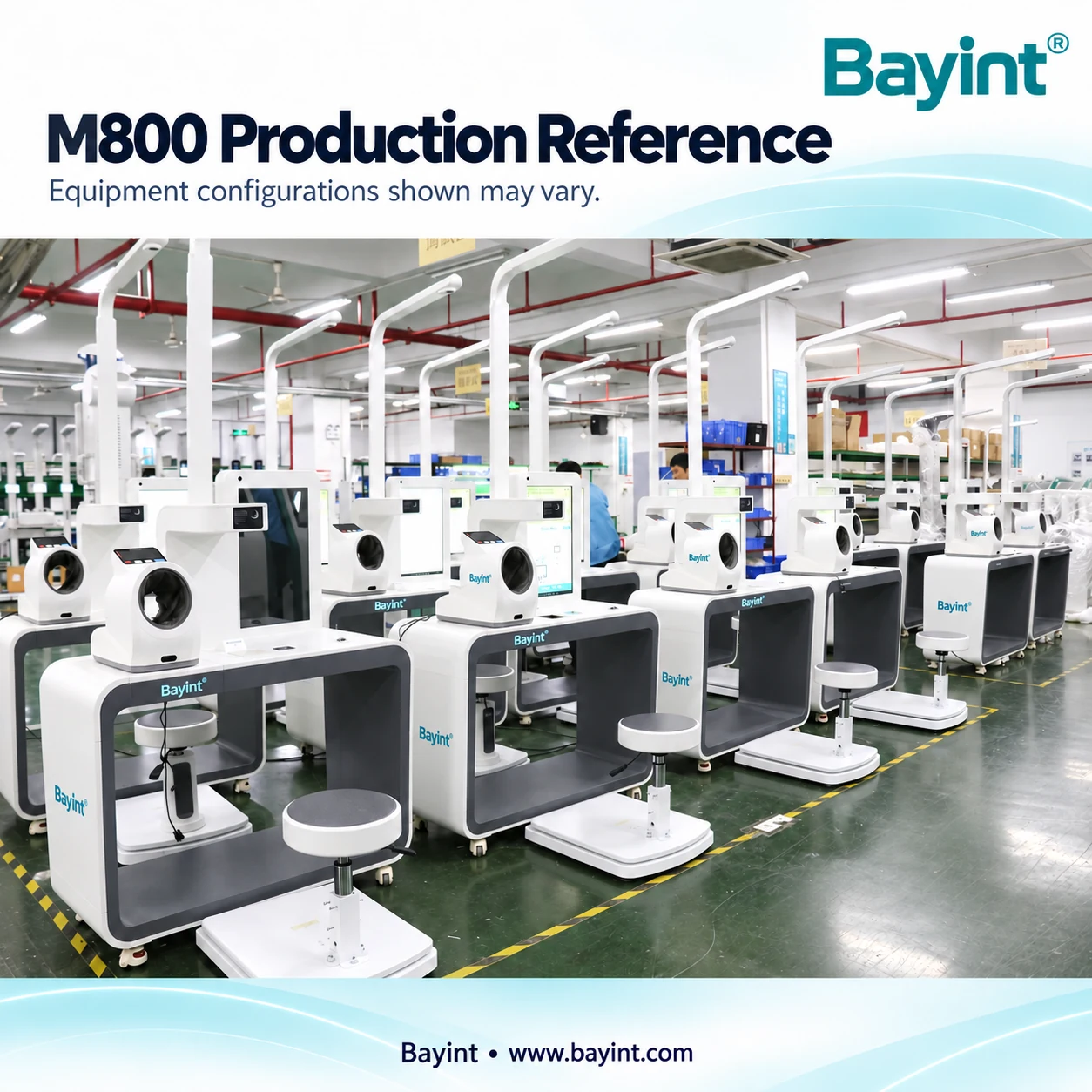

M800 production reference
Explore Bayint medical kiosks or discuss your deployment through our sales contact page.
M800 product downloads
Review the English brochure for measurement modules, system details, reporting and integration options.
Download M800 Brochure (PDF)Discuss Your Configuration
For the product operating manual, please contact your sales representative. Email deby@bayint.com.
Frequently asked questions
What does the Bayint M800 measure?
The M800 supports height, weight, BMI, blood pressure, blood oxygen and forehead temperature. Multi-frequency body composition analysis is optional. The delivered functions depend on your selected configuration.
Can the M800 connect to our HIS or EMR?
Integration can be planned around the selected network, data interface and software platform. Share your system requirements with Bayint so the team can confirm compatibility and the integration scope.
Can patients use this health kiosk independently?
The touchscreen provides guided interaction and measurements. Whether a patient needs assistance depends on the person, measurement modules and your clinical operating procedures.
Does the M800 print measurement results?
Yes. The built-in thermal printer provides measurement tickets. Report fields and branding depend on the software configuration.

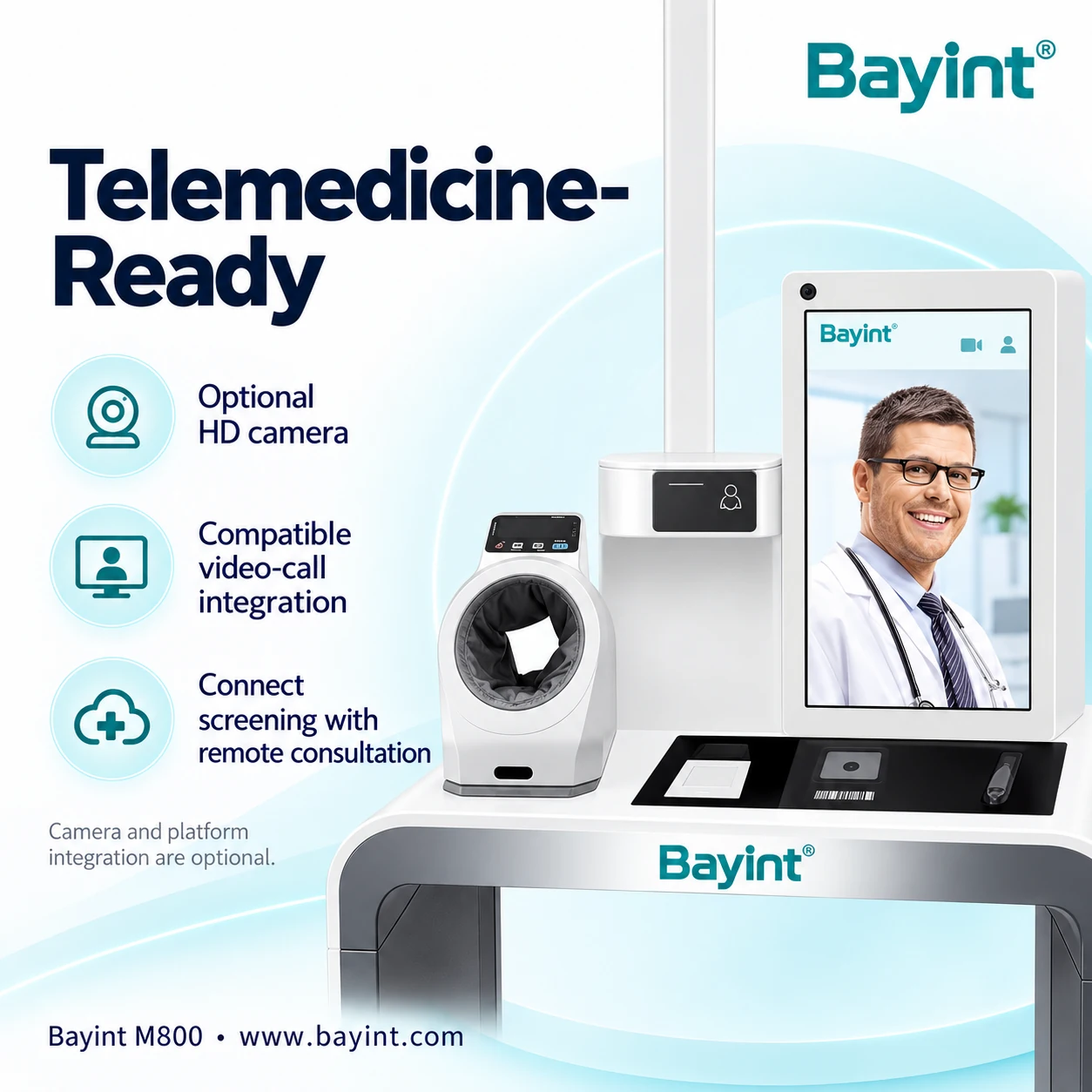

Is video consultation included?
Video consultation is optional and requires a selected camera and compatible platform integration. Confirm these options when planning your M800 configuration.
Where can I obtain the operating manual?
Contact your Bayint sales representative at deby@bayint.com for the product operating manual and information relevant to your delivered configuration.
