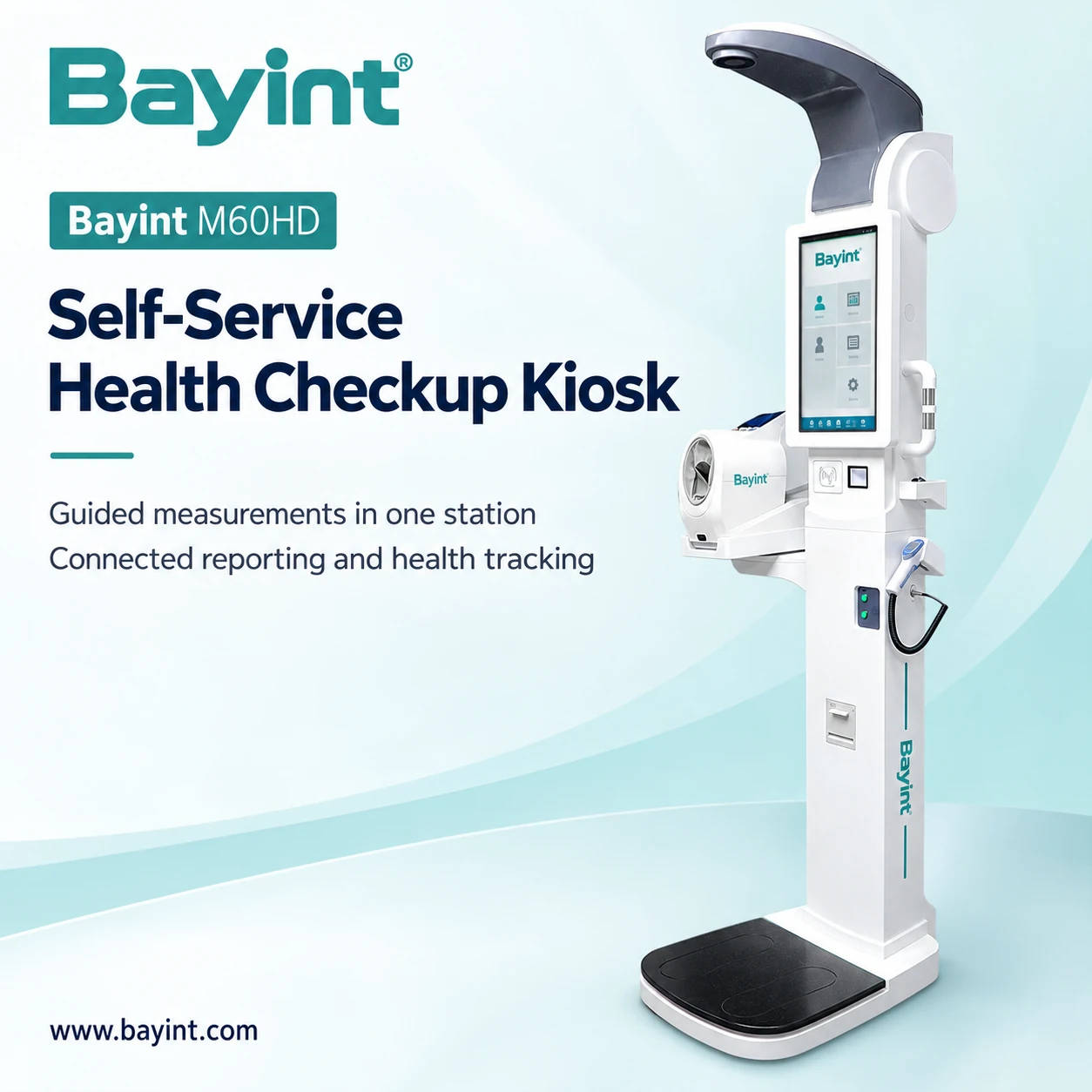

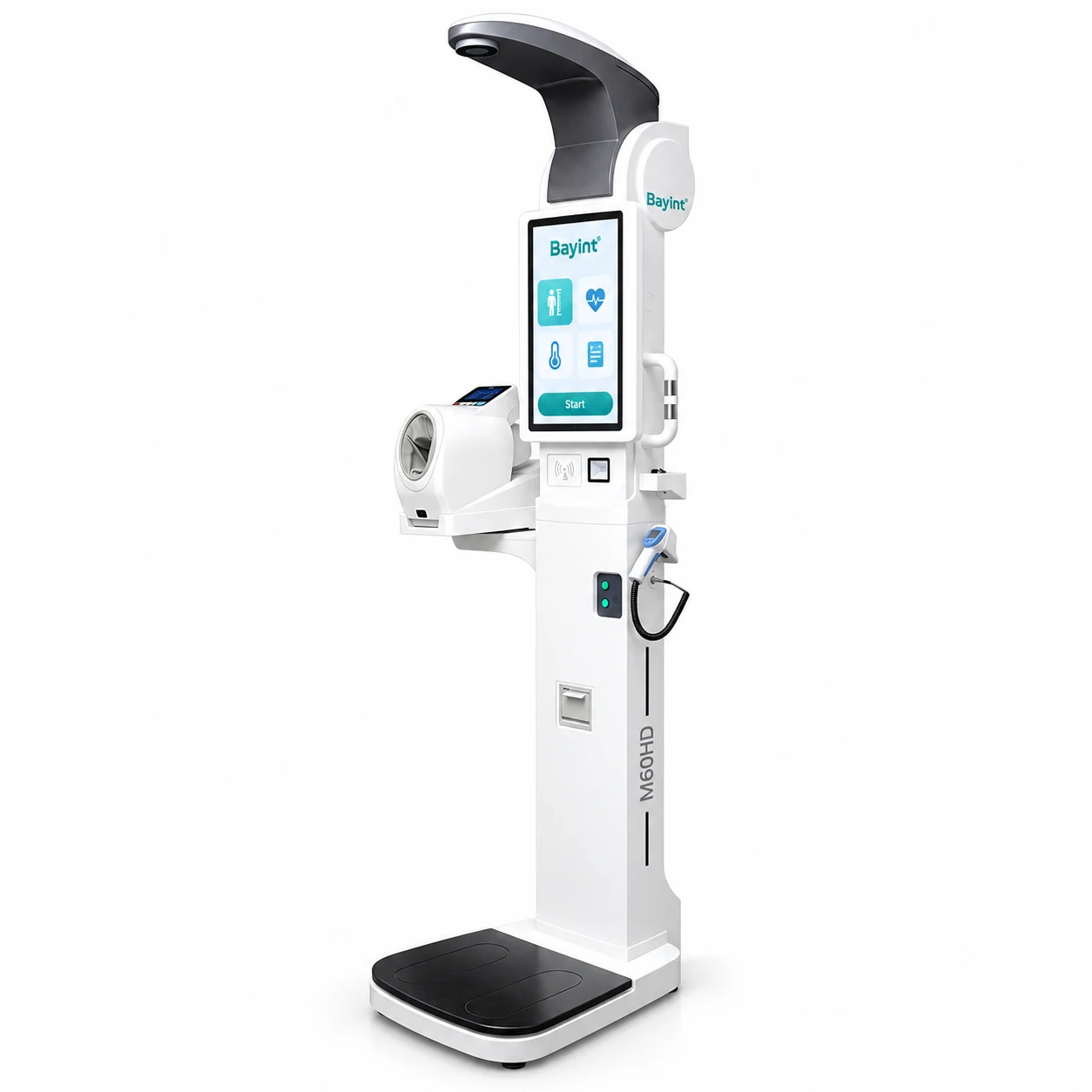

M60HD Health Checkup Station
- An all-in-one health checkup station for quick, comprehensive screening.
- Flexible access via QR code, ID card or coin-operated payment.
- A 21.5-inch touchscreen for easy navigation, with a side display for promotional content.

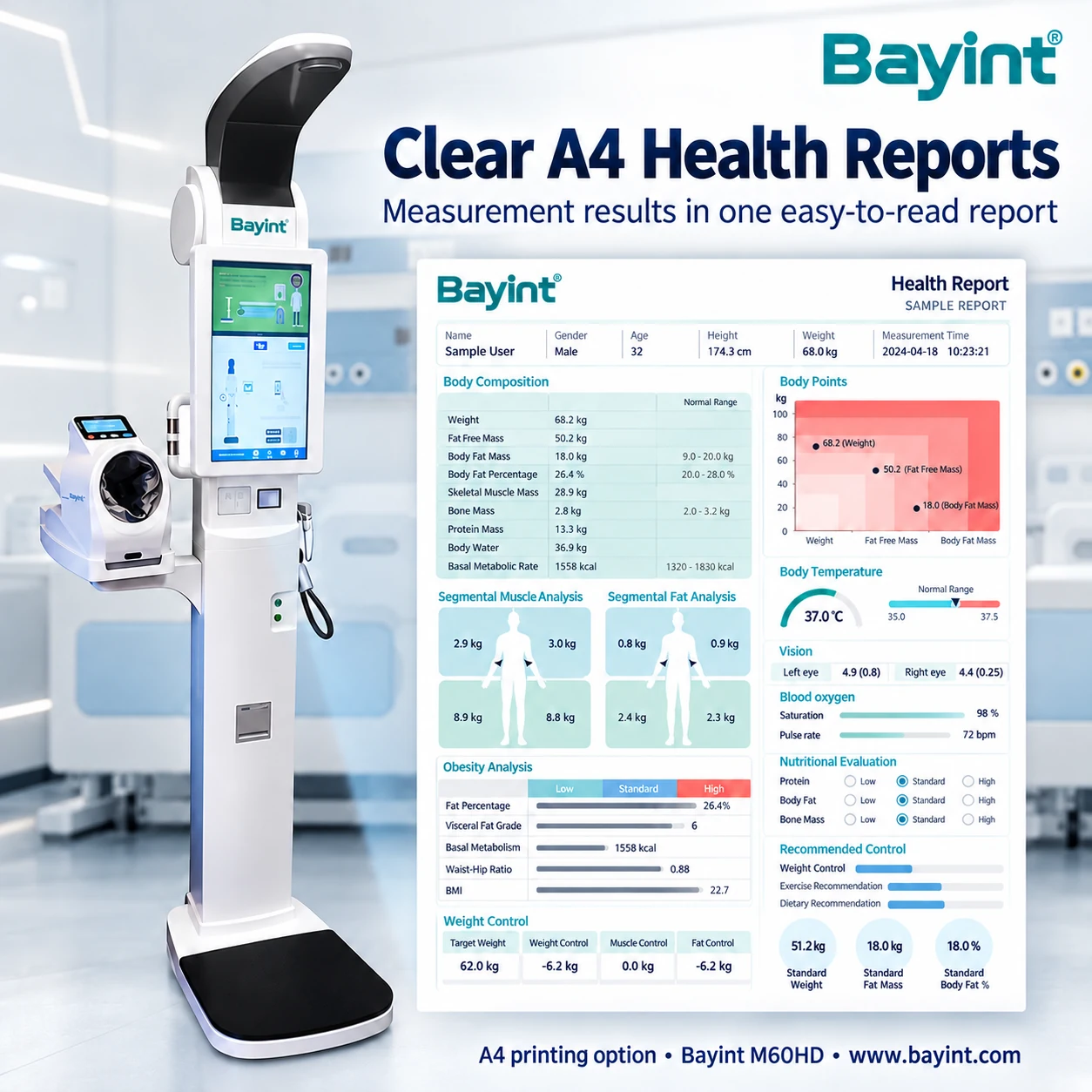

- Automatic A4 or thermal report printing after each test, depending on the printer configuration.
- Cloud and app connectivity for ongoing personal health tracking.
Designed for community clinics, pharmacy chains, health screening centers, school health offices and hospitals, the M60HD delivers fast, accurate measurement results in clear, easy-to-read printed reports.
Its self-service design guides users through their health checks independently. It also supports workplace wellness programs by helping employees engage with their health and work toward shared wellness goals.
An optional data collection feature supports secure, user-friendly tracking for personal health monitoring and progress over time.

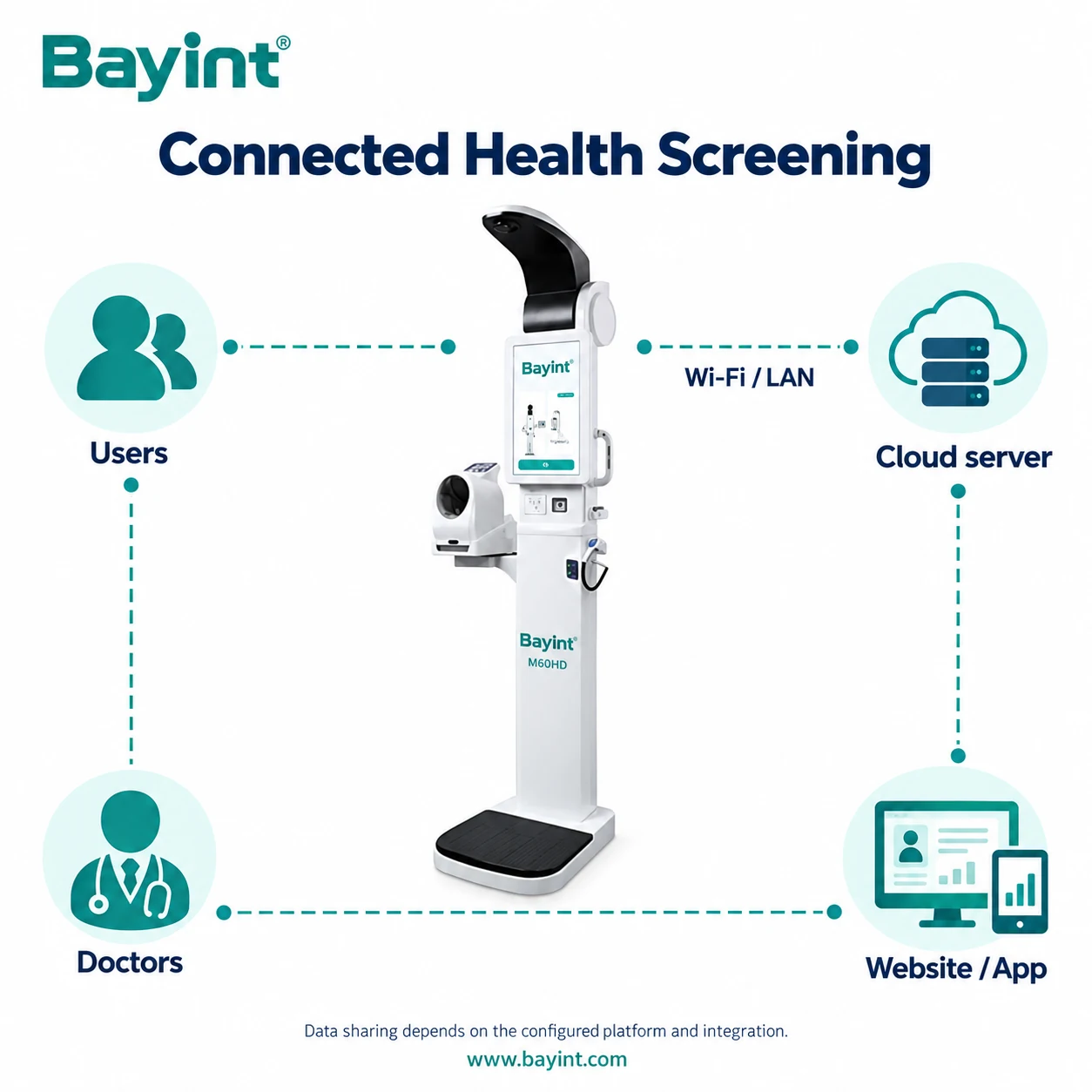

Connected Health Screening Solution
The M60HD all-in-one health checkup station guides users through comprehensive health screening independently.
Results upload automatically via Wi-Fi or LAN and synchronize with a secure cloud platform.
Doctors and users can view results through the website or mobile app, supporting remote consultations, ongoing health tracking and personalized care.
Base Functions
- Height, Weight, and BMI

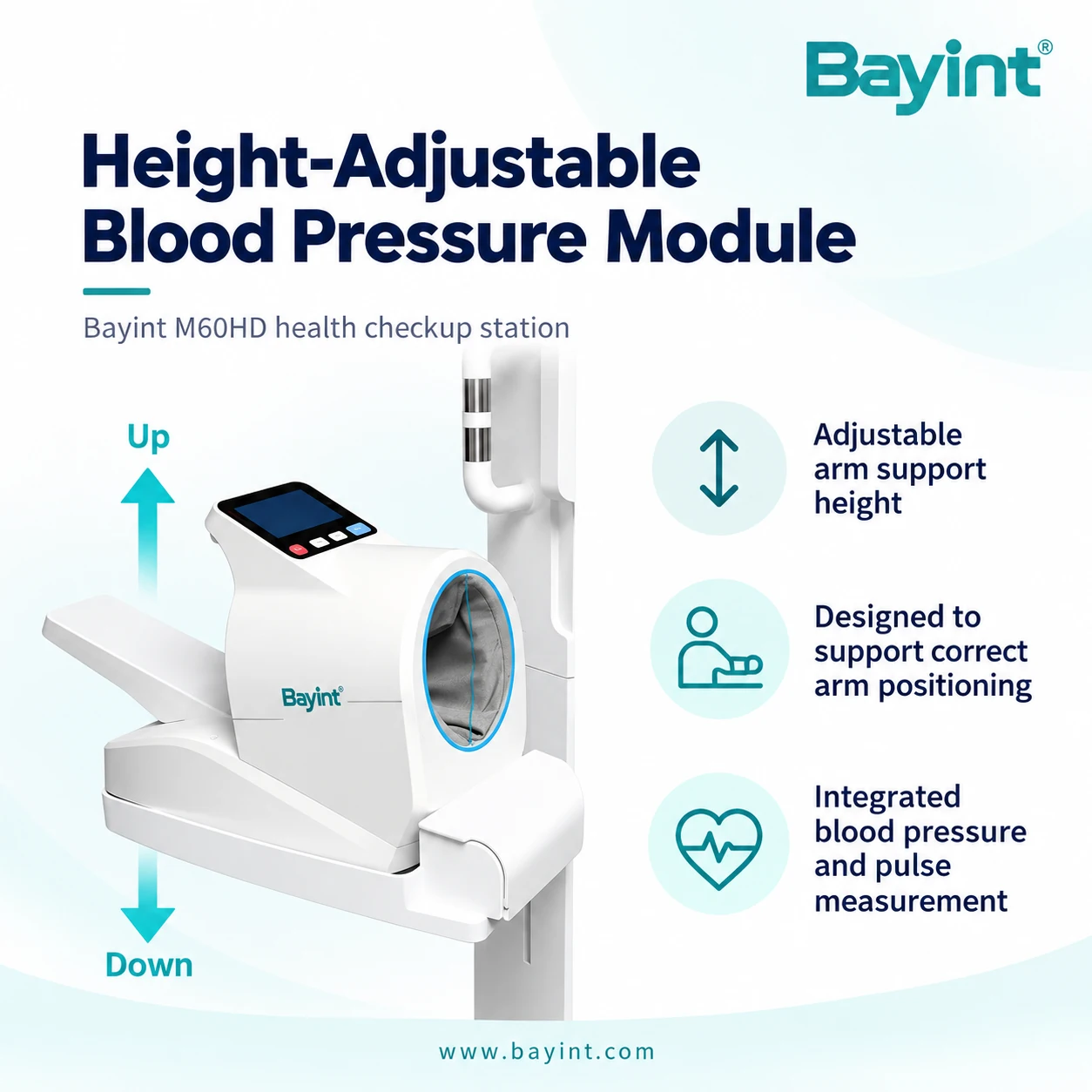

- Blood Pressure Monitor

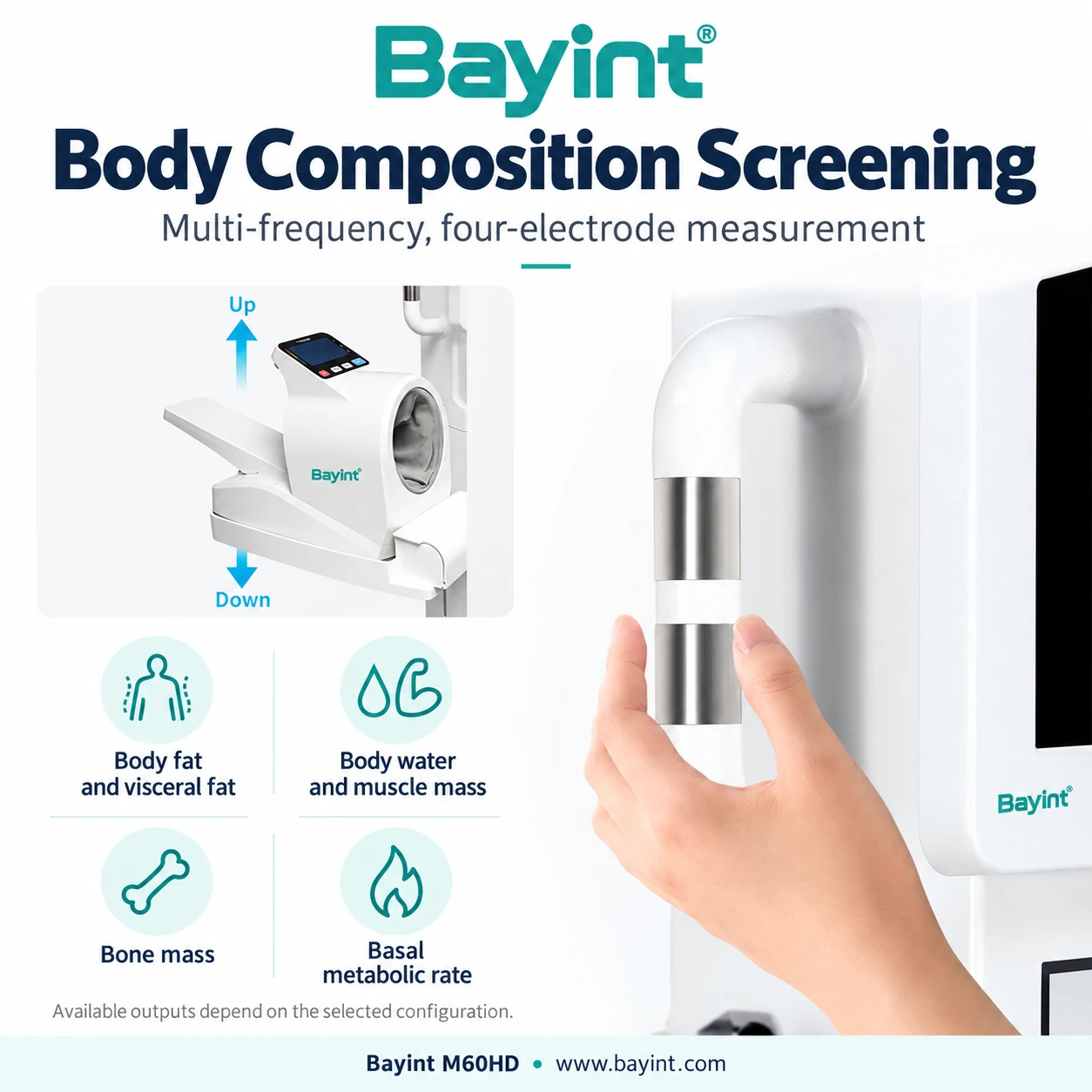

- 4-segment Body Composition Analyzer((measuring left arm, right arm, trunk, and legs)
- Body Temperature
- Blood Oxygen Saturation (SpO₂)
Supported Interfaces
- Wi-Fi&LAN
- USB
- RS232
- API
Optional
- Vision Test
- Language Customization
Typical Usage Scenarios

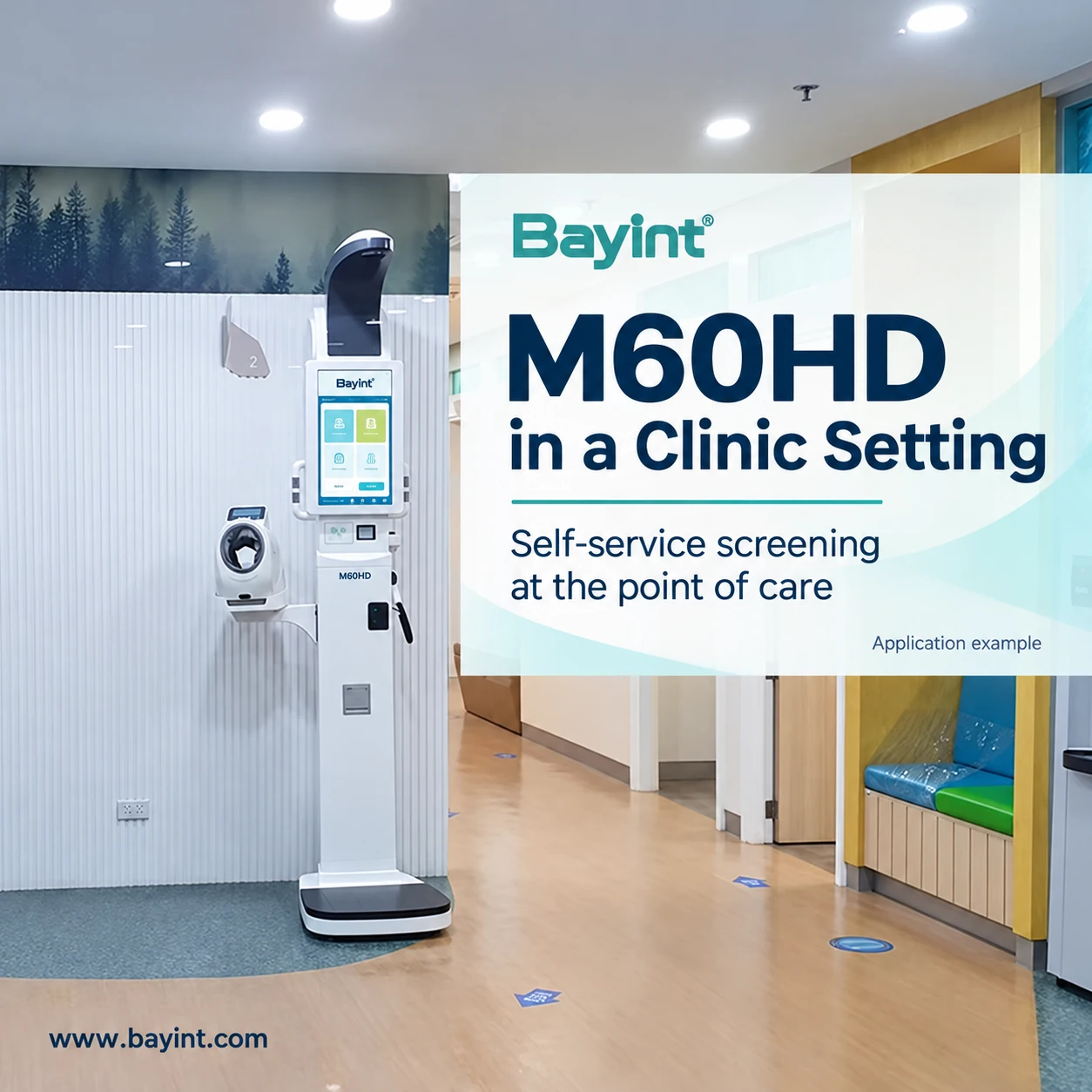

- Community Clinics
- Pharmacy Chains
- Health Check-up Centers
- School Infirmaries
- Hospitals
- Corporate Wellness Programs
- Public Health Service Points
| Item | Parameters | Specification |
| Host parameters | Operating system | Android |
| Data output interface | LAN network interface, Wi-Fi | |
| Power voltage | 220 AC (50Hz/60Hz) | |
| Rated power | (100W) maximum | |
| Operating / storage temperature | Operating: 5–45°C; storage: −10–60°C | |
| Overall dimensions | 880 (width) × 750 (depth) × 2400 mm (height) | |
| Weight | approx. 90KG | |
| Height | Configured height | Bayint height |
| Measuring system | Ultrasound | |
| Measuring range | 70.0 to 200cm | |
| Allowable error | ±0.5cm | |
| Weight | Configuration weight | Bayint weight |
| Measuring system | Resistance strain | |
| BMI | Automatic intelligent calculation of BMI | |
| Measuring range | 5.5 to 200kg | |
| Allowable error | ±0.1kg | |
| Fat | Measuring system | Multi-frequency 4-electrode |
| Electrode material | Electroplating material | |
| Measuring range | 200 to 1,000 Ω | |
| Body temperature | Display precise digits | 0.1℃ |
| Human body temperature measurement model | 32.0 to 42.5℃ | |
| Object temperature measurement mode | 0 to 100℃ | |
| Accuracy | ≤±0.3℃ | |
| Power consumption | ≤120mw | |
| Measuring distance | 5 to 8 cm | |
| Auto power-off | approx. 15s | |
| Blood Pressure Monitor | Display method | Digital display method |
| Measurement method | Oscillography | |
| Measuring range | Pressure: 0 to 300mmHg (0 to 40kPa) | |
| Pulse count: 30 beats/min to 200 beats/min | ||
| Precision | Pressure: Within ±2mmHg (±0.267kPa) | |
| Pulse count: Within +2% of a reading | ||
| Power supply | Power adapter (input AC 100 to 240V, 50/60Hz, output DC 12V, 3.5A) | |
| Operating temperature and humidity | +5℃ to +40℃. 15%RH to 80%RH | |
| Transportation & storage temperature and humidity | -20℃ to +55℃, 10%RH to 95%RH | |
| Operating atmospheric pressure | 80KPa to 106KPa | |
| Transportation & storage atmospheric pressure | 50KPa to 106KPa | |
| Measuring arm circumference | 17cm to 42cm | |
| Total weight | approx. 6.0Kg | |
| Blood oxygen | Sensor | Dual-wavelength luminous diode |
| Wavelength | Red light: 663nm | |
| Infrared light: 890nm | ||
| Measuring range | 35% to 100%; | |
| Maximum average optical output power | ≤2mW | |
| Measurement error | In the range of 70% to 100%; measurement error is ±2% | |
| Pulse measurement error | 30 to 250bpm Monitoring error is ±2bpm or ±2%, whichever is the maximum | |
| Thermal printer | Printing method | Thermal line |
| Power supply | 12V, 2A | |
| Width of printing paper | 58mm | |
| Print span | 48mm | |
| Paper thickness | 0.06 to 0.08mm | |
| Paper roll diameter | Maximum Φ60mm | |
| Laser printer | Paper size A4 | Black and white printer |
| Electronic vision | Logarithmic visual acuity chart | Measurement distance is 2.5M and a measurement report is automatically printed. |
M60HD Product Resources
M60HD Product Brochure
Download the Bayint English product brochure (PDF).
Components & Accessories
View measurement modules and accessory close-ups on page 2.
Sample Reports & Workflow
View illustrative A4 and thermal report samples and the screening workflow on page 3.
Contact Bayint Sales
Ask about M60HD options, quotations and your project requirements.
Request the Operating Manual
For the product operating manual, please contact your sales representative.
Technical Specifications
Review dimensions, measurements, interfaces and operating requirements.
Bayint M60HD FAQs
What does the Bayint M60HD measure?
The base functions cover height, weight, BMI, blood pressure, body composition, body temperature and blood oxygen saturation (SpO₂). See the specifications for the measurement ranges of each module.
Which M60HD features are optional?
Vision testing and language customization are optional. Ask Bayint to confirm the configuration for your project before ordering.
How does the M60HD connect to other systems?
The station supports Wi-Fi and LAN connectivity, with USB, RS232 and an API listed among its supported interfaces. Contact Bayint to review your system integration requirements.
Can the M60HD print screening reports?
The product specifications list a 58 mm thermal printer and an A4 black-and-white laser printer. Confirm the printer configuration with Bayint. Illustrative report samples are available in the product brochure.
Where can the M60HD be used?
Typical settings include community clinics, pharmacy chains, health check-up centers, school infirmaries, hospitals, corporate wellness programs and public health service points.
Where can I find the brochure and operating manual?
Download the Bayint M60HD product brochure from the Downloads section. For the operating manual, contact your Bayint sales representative at deby@bayint.com.
